Product Details:
|
| Paper Name: | PCB Kraft Paper | Weight: | 150G, 190G |
|---|---|---|---|
| Material: | Virgin Wood Pulp | Application: | For Pressing PCB FPC CCL |
| MOQ: | 1tons | Feature: | High Temperature Resistance |
| High Light: | High Temperature Resistance Kraft Paper,190g Pressing PCB Paper,Paper For Pressing PCB FPC |
||
|
Basic weight |
150gsm, 190gsm |
|
Normal size |
787mm, 889mm, 1092mm, 1194mm |
|
Other size |
Can be customized, like 24'' x 18'' |
|
Temperature range |
≥230℃ |
|
Advantages |
Good hot-pressing elasticity and high flatness |
|
Coating |
Uncoated |
|
Color |
Brown |
|
Packing terms |
Sheet packing or roll packing |
|
Certificates |
ISO, FSC, SGS |
|
Payment terms |
TT, paypal, western union |
|
Delivery date |
About 5 - 25 working days |
|
Loading port |
Guangzhou port or shenzhen port |
|
Sample service |
A4 size samples for free |
|
Quality |
Grade AAA |
|
Trade term |
EXW, FOB, CNF, CIF |
|
Origin of city |
Guangzhou city, Guangdong province |
♦ PCB Kraft Paper Feature & Usages
Feature:
1. The paper is flat and clean. There are no folds, wrinkles, holes, sand, etc.
2. Hot pressing has good elasticity and high flatness, which can significantly improve the quality of pressing
and improve the yield of products.
3. The paper surface is uniform in quantitative and uniform thickness.
4. The heat transfer performance is stable, uniform without fluctuation, and the heat transfer rate is moderate.
5. The moisture content of the paper is controlled below 8% to avoid the adhesion between the pads or the
steel plate during the pressing process.
6. The fiber structure is uniform, and the paper surface is smooth without wrinkles and foreign matter.
Usages:
It is mainly used in the lamination pressing process of FPC, PCB, CCL and other industries, and plays the
role of heat preservation, water absorption, decompression, buffering, heat transfer, etc. They can make
PCB more good quality and reduce Non-performing rate when production .
♦ PCB Kraft Paper Specification
|
Grammage (g/m2) |
150±5 |
190±5 |
|
Thickness ( mm ) |
0.22±0.03 |
0.26±0.03 |
|
Tensile strength (CD) |
≥5.0 |
≥5.0 |
|
Tensile strength (MD) |
≥6.5 |
≥6.5 |
|
Pressing times |
3~5 |
3~5 |
|
Air permeability (um/Pa.s) |
≥6.35 |
≥6.35 |
|
Moisture ( % ) |
3~8 |
3~8 |
|
High temperature resistance (℃) |
≥230℃ |
≥230℃ |

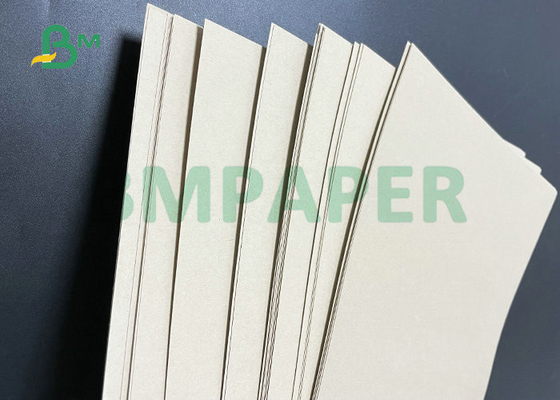

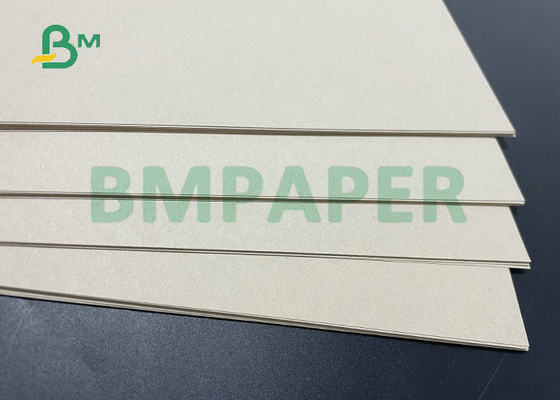

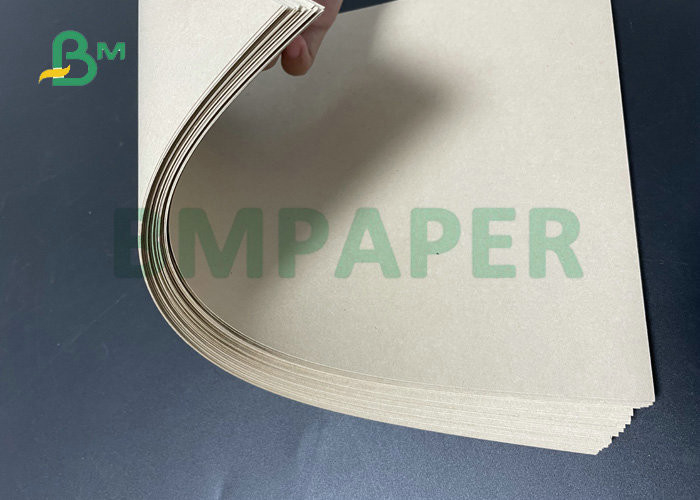

♦ PCB Kraft Paper Images
