Product Details:
|
Item: | Duplex Board | Basic Weight: | 200 - 450gsm |
---|---|---|---|
Surface: | One Side White Coated And Smooth, The Other Side Is Grey | Size: | 700, 900, 1000, 1160mm, Etc. Customized |
Printing Gloss: | ≥ 80% | Moiture: | 6.5 - 8.0 ± 1.5% |
Raw Material: | Recycled Pulp | Sample: | Available |
High Light: | duplex board grey back,duplex paper board,white lined grey board |
C1S White Lined Grey Board 450g 400g Jumbo Roll 1160cm For Packaging Box
White lined grey board description:
White lined grey board specification:
Properties | Unit | GSM & QUALTIY | |||||||
Basic weight | g/m2 | 200 | 230 | 250 | 270 | 300 | 350 | 400 | 450 |
Basic weight tolerance | % | ±7 | |||||||
Caliper | μm | 230±15 | 280±15 | 305±15 | 330±15 | 365±15 | 430±15 | 495±15 | 550±15 |
Moiture | % | 6.5±1.5 | 7.0±1.5 | 7.5±1.5 | 7.5±1.5 | 7.8±1.5 | 8.0±1.5 | 8.0±1.5 | 8.0±1.5 |
Stiffness(Taber) SD/MD | ≥ g.cm | 13 / 26 | 13 / 26 | 15 / 30 | 22 / 50 | 35 / 70 | 55 / 110 | 70 / 140 | 85 / 170 |
Top COBB Value | g/m2 | ≤ 50 | |||||||
Back COBB Value | g/m2 | ≤ 300 | |||||||
SD Difference of Gram | % | ≤ 3.5 | |||||||
SD Difference of Caliper | % | ≤ 3.5 | |||||||
Roughness | μm | ≤ 2.0 | |||||||
Brightness ( Top ) | % | ≥ 76 | |||||||
Folding Endurance CD | times | ≥ 12 | |||||||
Gloss (75°) | % | ≥ 35 | |||||||
Printing gloss | % | ≥ 80 | |||||||
Ply Bonding | J/m2 | ≥ 130 | |||||||
Blister Speed | m / s | ≥ 0.9 | |||||||
K & N Value | % | 23 ± 5 | |||||||
Color | L | ≥ 86.5 | |||||||
A | 0.0 ± 0.5 | ||||||||
B | -4.5 ± 0.5 | ||||||||
Dirt ≥ 0.3 mm2 | m2 | ≤ 40 | |||||||
Dirt ≥ 1.5 mm2 | m2 | ≤ 40 | |||||||
Printing | times | ≥ 2 | |||||||
CONDITIONS OF TESTING:TEMPERATURE:23±1℃,RELATIVE HUMIDITY:50±2% |
White lined grey board application:
Different kinds of packaging box, such as gift box, food stuff indirect contact box, shoe box, courier bags, etc.
Our service:
♦ Small MOQ: 5 tons
♦ Delivery time: 10 - 15 working days after payment received.
♦ Payment terms: T/T
♦ Sample: free sample provided.
♦ Nearby by main port: Guangzhou port, Shenzhen port

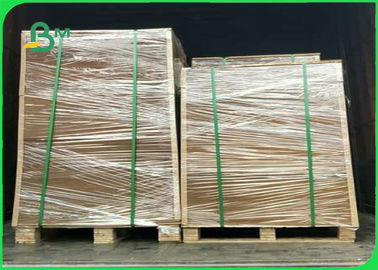

White lined grey board packing:
